Fax Bridge – VoIP Fax Adapter
READY TO START FAXING?
Add Fax Bridges to any KwiKom Fax Plan for
$20/Month/Fax Bridge
$50 one-time setup per Fax Bridge
Click the button to see our pricing plans.
FEATURES
No complex setup or installation. Just plug your Fax Bridge in and start faxing.
Using a Fax Bridge with your physical fax machine eliminates the need for POTS/analog phone lines. Stop paying unnecessary costs to use your fax machine.
Fax Bridges can help reduce paper waste since all incoming faxes are automatically emailed to you. They also increase security and help with compliance since all faxes sent and received with a Fax Bridge are automatically stored securely in the cloud.
FAX BRIDGE OVERVIEW
Organizations are consolidating voice, fax and data resources to cut costs and simplify their communications infrastructure. Voice over IP (VoIP) and Fax over IP (FoIP) are two technologies that have become critical to organizations as they create a unified strategy for voice and data communications. These technologies allow companies to reduce their total cost of ownership by eliminating telephony hardware and consolidating the management of voice, data and fax communications.
Fax machines can be located anywhere and used as secure fax terminals when connected to Fax Bridge devices. Fax Bridge devices auto provision and do not require any remote software configuration.
Fax Bridge eliminates the need for POTS lines and requires only an internet connection and power source.
Certification
The device has been tested certified and conforms to FCC and CE standards. All components are RoHS compliant.
The following tests have been performed:
- Electrostatic Discharge Immunity
- RF Electronic Magnetic Field Immunity
- Electrical Fast Transient Burst
- Variable Surge Test Immunity
- Immunity to Conducted Disturbances
- Voltage Dips and Interruption Immunity
Testing standards:
EN 55022: 2206, EN 55024: 1998+A1, EN 55024: 2001+A2, EN 55024: 2003, EN 60951: 2006, EN 60952: 2014
DATASHEET

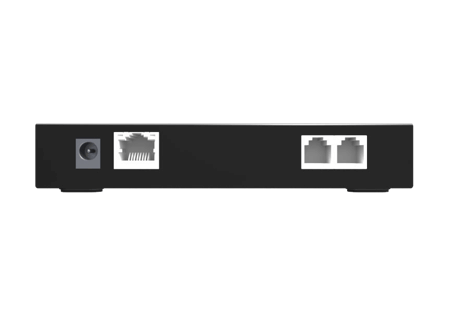

| Physical Interfaces | RJ45 with PoE RJ11 Fax Machine RJ11 FXS Device FTDI Management |

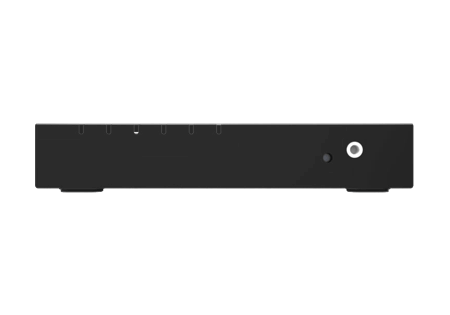

| Indicator Lights | Phone/Fax line Power state System status Ethernet link |
| Power Options |
5V DC External 5V DC Internal PoE via LAN interface |
| Physical Operating Environment | 41 to 114F 5 to 45C 10 to 90RH |
| Physical Dimensions |
5.5″ x 4.25″ x 0.9″ (unit) 5.75″ x 8.75″ x 1.75″ (box) 2.7oz (raw weight) |
| Fax Protocol Support |
V.34, V.17, V.29, V.27, V.21 MH, MR, MMR ECM Capable |
| Operating System |
Embedded Linux-based kernel 256MB NAND 64MB RAM 8MB Flash |
| Network Configuration |
Static IP Address DHCP Client |
| Remote Provisioning |
Automatic via HTTPS Firmware Updatable System Image |
| Device Identification | Provisioned UID MAC based UID |
| Remote Diagnosis |
Telnet SSH HTTP, HTTPS TFTP, FTP, SysLog |
